Collapsed Subprocesses

Diagrams can contain collapsed subprocesses to hide complexity on multiple levels. You can drill down into collapsed subprocesses with the drilldown icon.

Process diagram​

If you have a collapsed subprocess in your diagram, a drilldown icon will appear in the lower right of the activity.

A Collapsed Subprocess Shape with a drilldown Action

The collapsed shape indicates if there are running child instances or if an incident occurred in a child activity.

If you click on the drilldown icon, the diagram will show the contents of the collapsed subprocess. Use the breadcrumbs in the upper left corner of the diagram to navigate back to the parent process.

Breadcrumb links showing the process hirarchy

The breadcrumbs show the process hierarchy. Opening an expanded subprocess opens the nearest collapsed subprocess.

Migration​

When migrating collapsed subprocesses, be aware that the collapsed shapes hide other activities. The wizard only displays connections for the current layer.

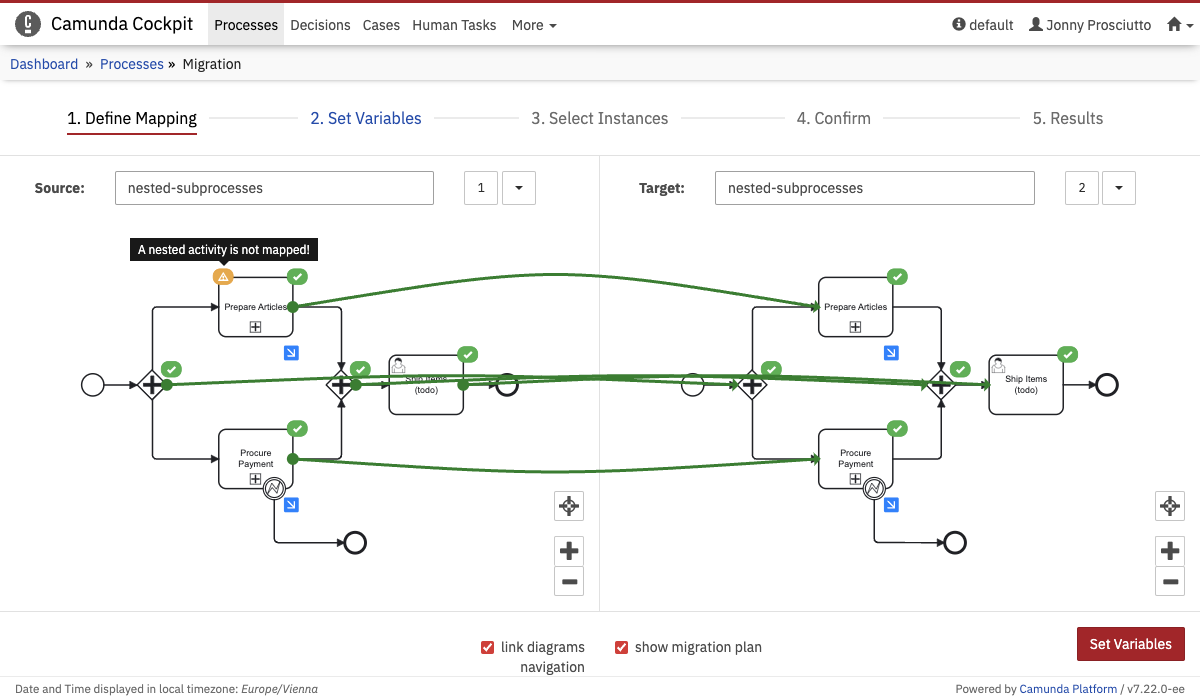

Migration view for collapsed subprocesses

Additionally, collapsed subprocesses can have two badges:

  • Status of the subprocess activity
  • Status of the child activities

If a child activity of the collapsed subprocess is not mapped or has an error, an additional badge is shown on the left of the shape.
