Decision Requirements Definition Instance View

Decision Requirements Definition Instance View

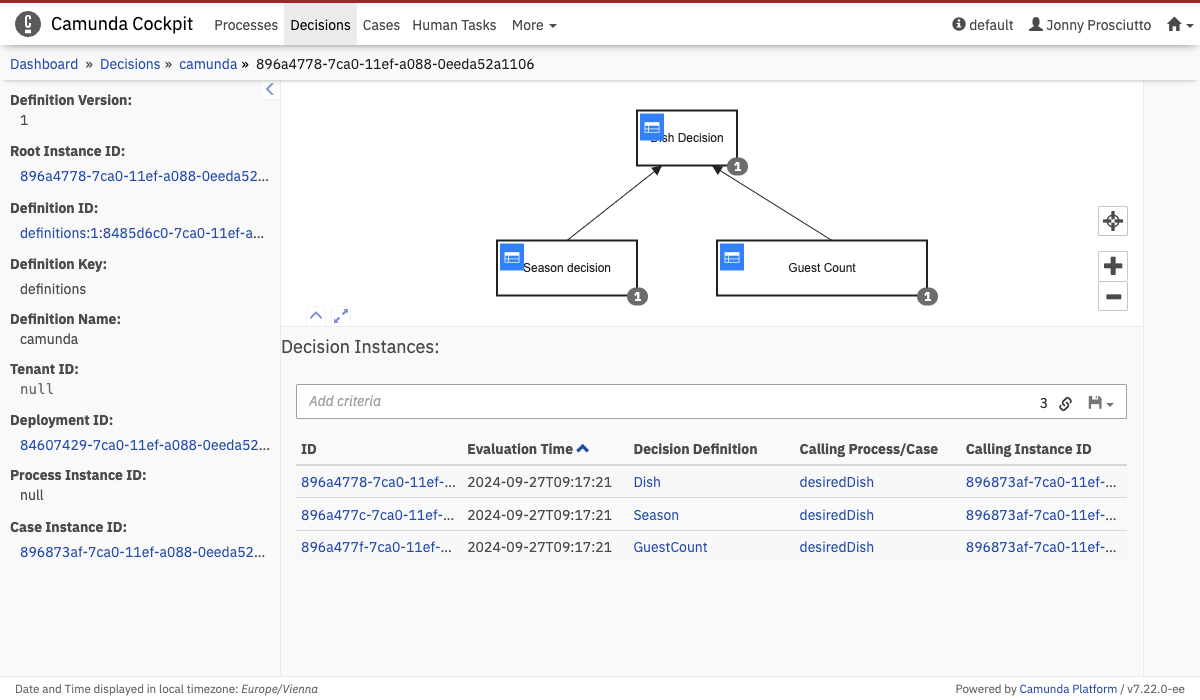

On the decision requirements definition instance view, you can find a diagram of the deployed decision requirements definition. Use the mouse to navigate through the diagram. Turn the mouse wheel to zoom in and out. Hold the left mouse button to pan the diagram in the desired direction. Click a decision definition in the diagram to filter instances in the table below by the selected definition. You can also select multiple decision definitions while holding the control key.

When a decision definition is either a decision table or a literal expression, a green icon is displayed in the top left corner of the decision definition element on the diagram. Click it to navigate to the decision definition view.

Furthermore, the decision requirements definition instance view provides information about the instance. On the left side, you can easily survey the versions of the decision requirements definition. The version of the decision requirements definition can be changed in the drop-down menu. The diagram is then updated accordingly. Click the definition ID to go to the decision requirements definition view. Click the deployment ID to go to the deployment view.

You can maximize the table view or the detailed information panel by clicking the button or the button at the bottom left of the table view.

Decision Instances Tab

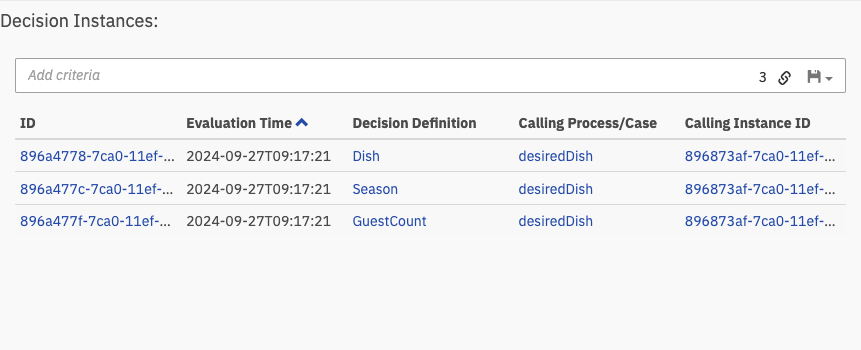

In the lower panel, you can see a list of all decision instances for this decision requirements definition instance. You can also search for decision instances that match certain search criteria. To do so, click in the search box and select the parameters to search for. You can also begin typing to find the required parameter faster. You have to specify the value of the selected property to perform the search and you can combine multiple search pills to narrow down the search results.

Furthermore, you can copy a link to the current search query to your clipboard by clicking the button and you can save search queries to your local browser storage by clicking the button and entering a name in the drop-down menu that appears. You can then retrieve the search query by clicking the button and selecting the chosen name in the drop-down menu.

If the decision instance was executed in the context of a process, you can also find the process definition as well as the process instance ID that executed that specific decision instance. Click the links to go to the corresponding pages. The same principle also applies to case definitions and case instances. Click the ID of the decision instance to go to the decision instance view. Click the decision definition to go to the decision definition view.
