Definition Of operation

![Example img](./../img/batch/batch_operation_definition.png" alt="Batch Operation Definition" caption="

It is possible to execute the following batch operations:

Delete running process instances.
Delete finished process instances.
Set retries of Jobs belonging to process instances.
Set retries of external tasks belonging to process instances.
Set variables to process instances.
Suspend running process instances.
Activate suspended process instances.
Delete decision instances.
Set a Removal Time to Historic Process Instances.
Set a Removal Time to Historic Decision Instances.
Set a Removal Time to Historic Batches.
Correlate Message.

After selecting the operation, fields may appear with additional data that is either optional or required to perform the operation. When canceling running process instances, you can optionally select to skip custom listeners and provide a cancelation reason.

Next, you can define the instances affected by the batch operation. Initially, all instances are displayed. You can use the filter bar above the list of instances to filter the displayed instances. You can select specific instances or click on the Query radio button to select all instances matching the filter.

Warning

Selecting all instances might create a high load on the database and application runtime/server if the query has a high number of results.

You can copy a link to the current search query to your clipboard by clicking on the button and you can save search queries to your local browser storage by clicking on the button and inserting a name in the drop down menu that appears. You can then retrieve the search query by clicking on the button and selecting the chosen name in the drop down menu.

Please note that some operations can only be executed on running instances, while others can only be executed on finished instances. You will see an appropriate notice once the operation type is selected.

Navigation to the next step is disabled as long as all required data to perform the operation is not filled out.

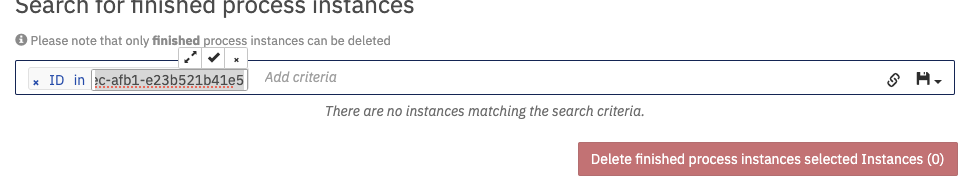

Example img IN Operator

Cockpit provides IN operator support when filtering for process instances for the following query criteria:

Process instance ID
Business key
Process definition key
Variable value

By default, the criteria defined in the search are linked together with a logical AND (conjunctive normal form). Occasionally, you may search for multiple query criterion values. The IN operator allows searching for multiple values where any of the values match.

To use the IN operator, select a query criterion that supports the IN operator, and provide the values as a comma-separated list. To adjust the comma-separated list of values, start editing by clicking on the value. You can expand the value in a modal dialog for easier editing by clicking on the button.

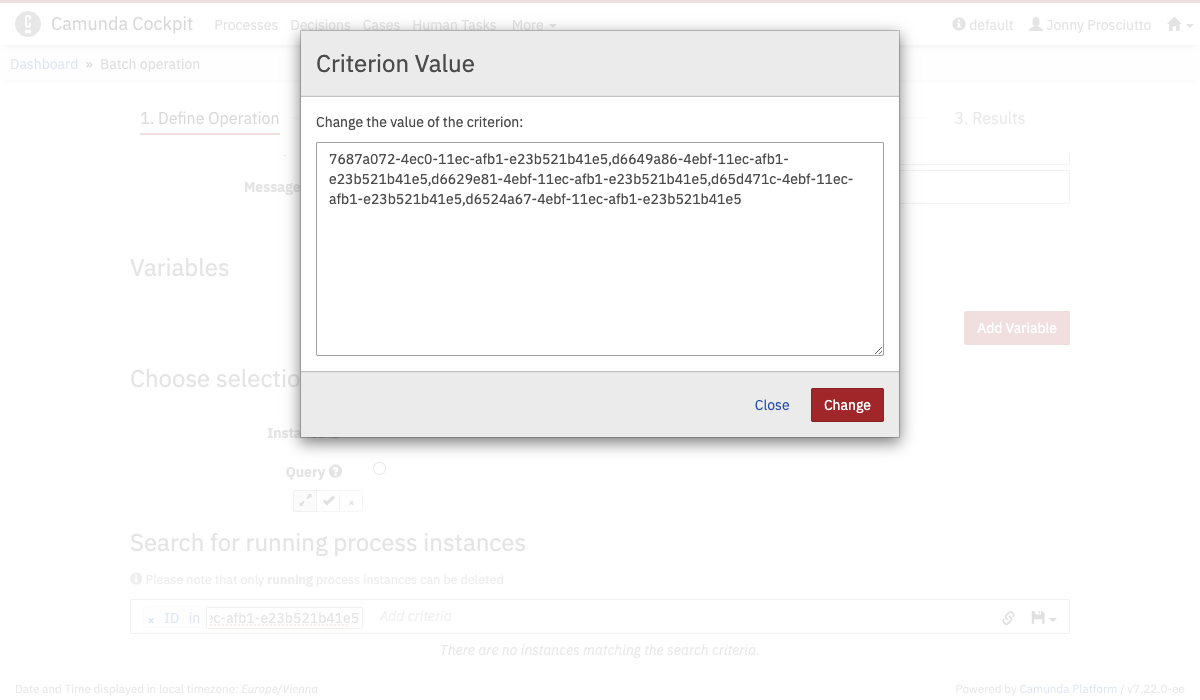

Example img IN Operator Modal

Heads-up!

The instance search operates on the history endpoint of the engine. In case the requested historic data is not persisted to the database, then the search does not deliver the desired results.

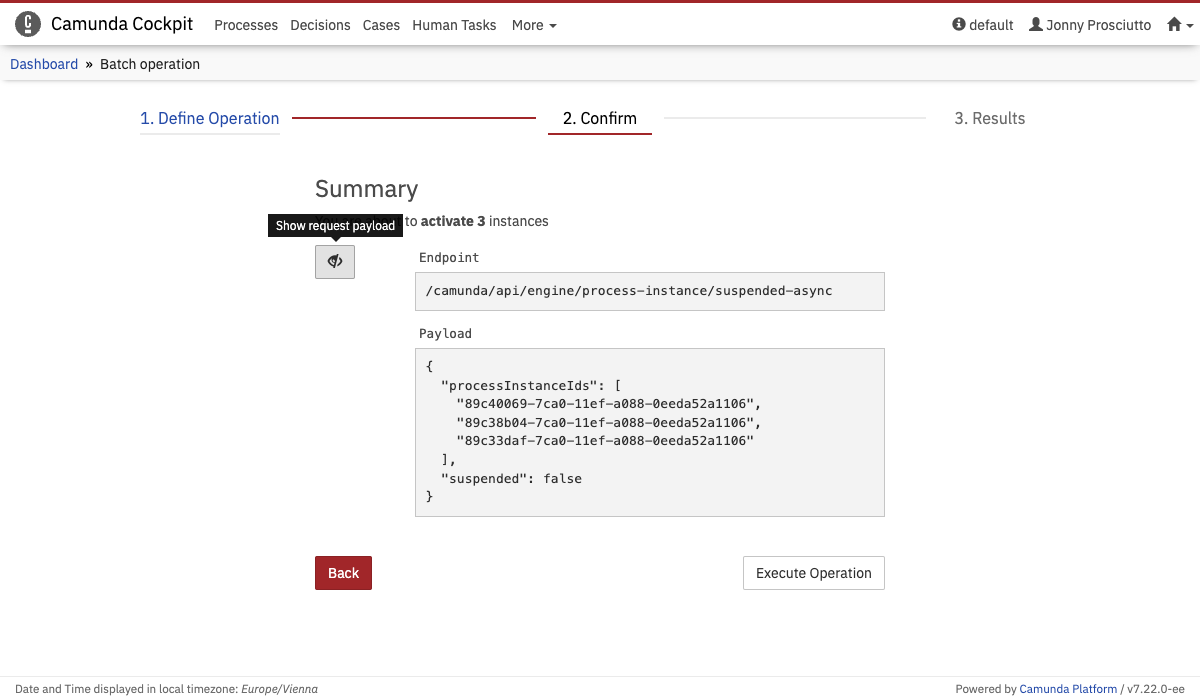

Confirmation of operation

![Example img](./../img/batch/batch_operation_confirmation.png" alt="Batch Operation Confirmation" caption="

In the next step of the process, you can review the operation that is going to be performed. One can see a short summary of affected instances count as well as a button which toggles display of extended information. In the section with extended information, you see a path to the REST endpoint that will process the request as well as the payload of the request.

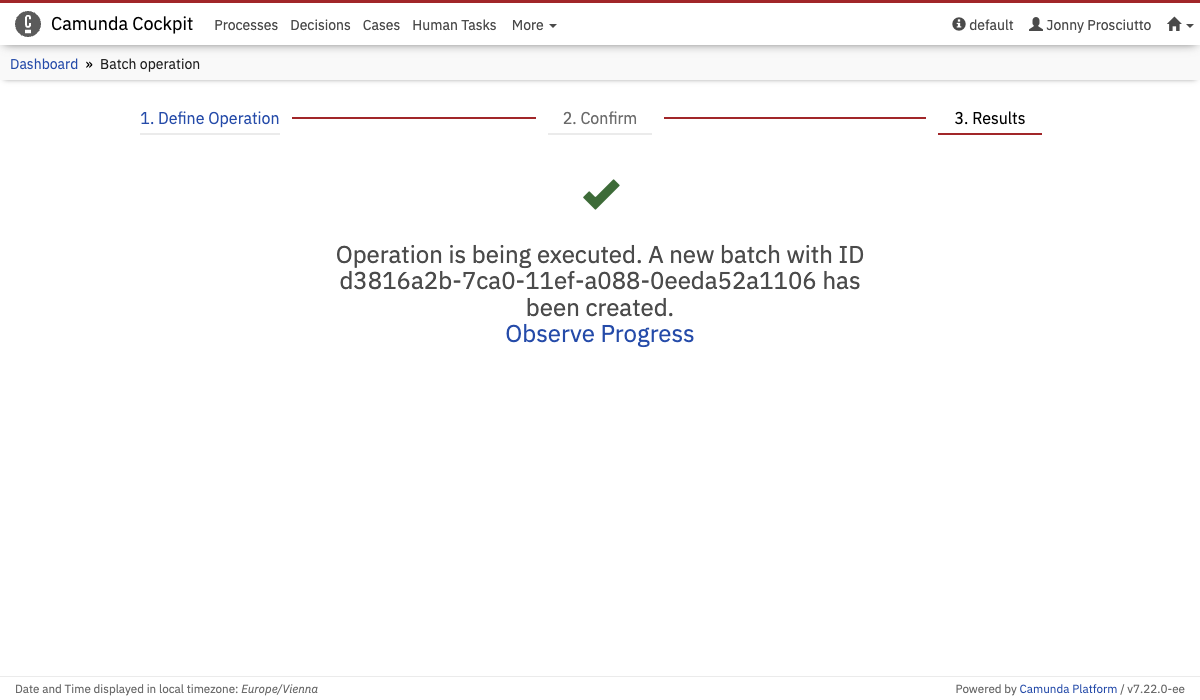

Review results

![Example img](./../img/batch/batch_operation_result.png" alt="Batch Operation Result" caption="

On the results screen you will see the current status of the batch operation creation. Upon successful batch creation, the user is able to navigate to batch monitoring. In case of error, this screen will display a corresponding error message.
